In the production of high-quality square weave wire mesh, Anpeng, a professional woven wire mesh factory, has many years of experience. Our high-performance square woven mesh guarantee: accurate openings and wire sizes, superior flatness, top-quality materials, and high cost-effectiveness. We boast robust manufacturing capabilities and a substantial inventory, ensuring our square weave mesh meet the rigorous demands of your screening applications and industry standards.

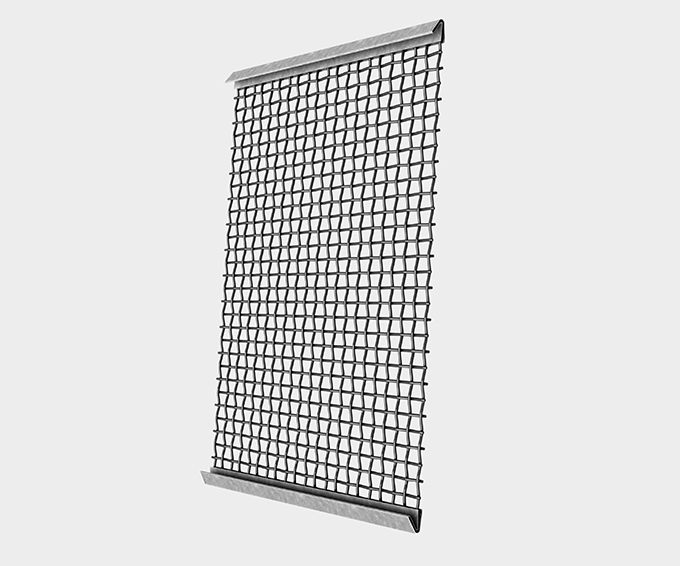

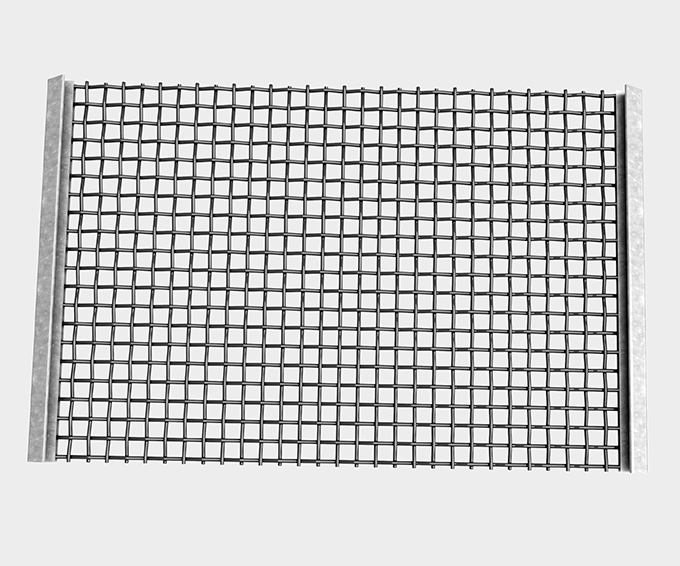

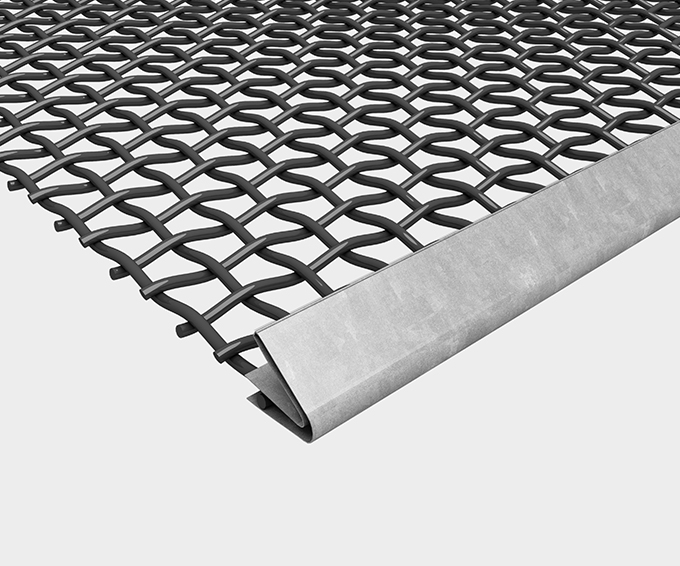

Plain Weave

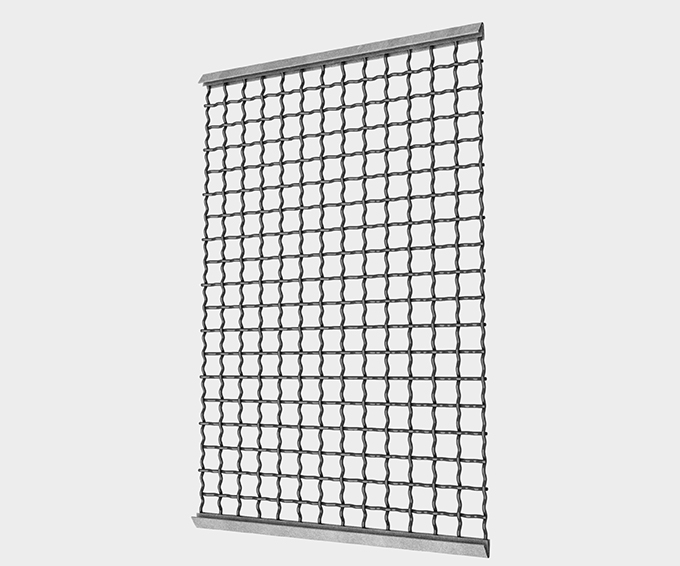

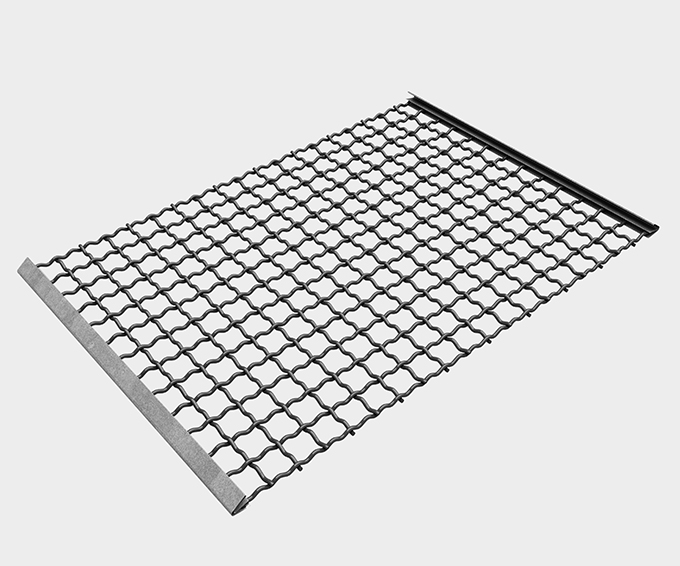

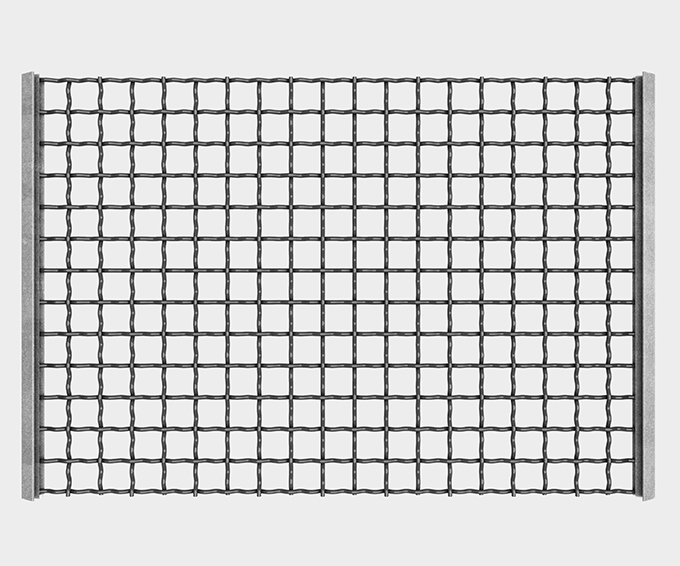

Inter Crimp

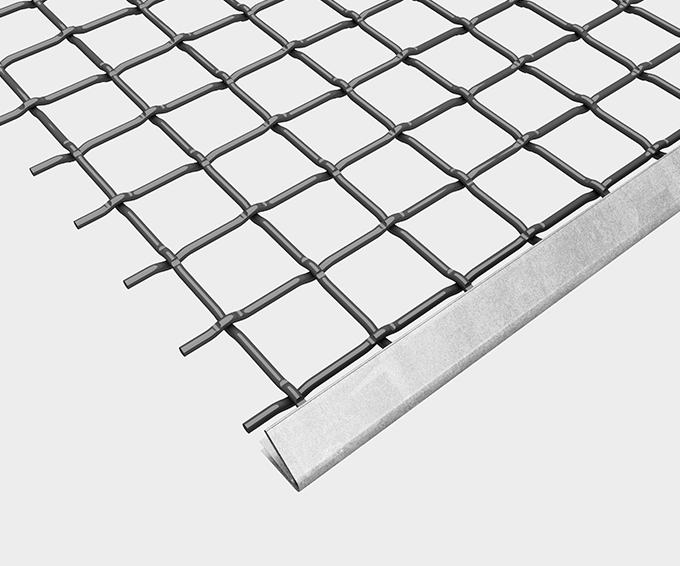

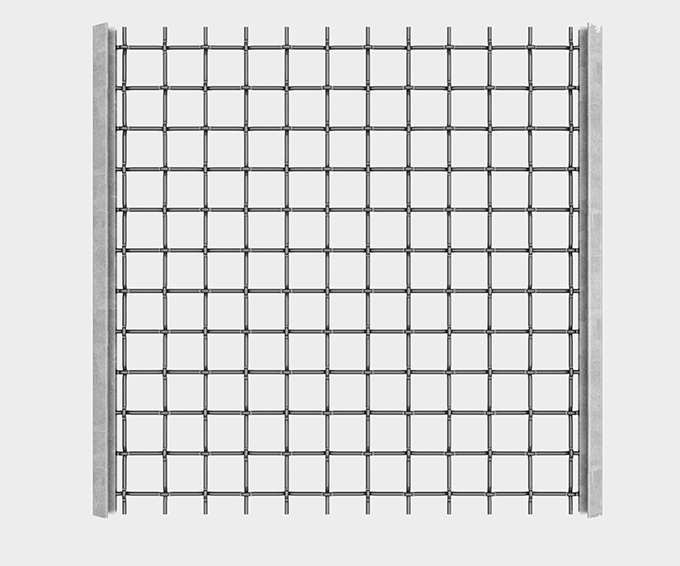

Lock Crimp

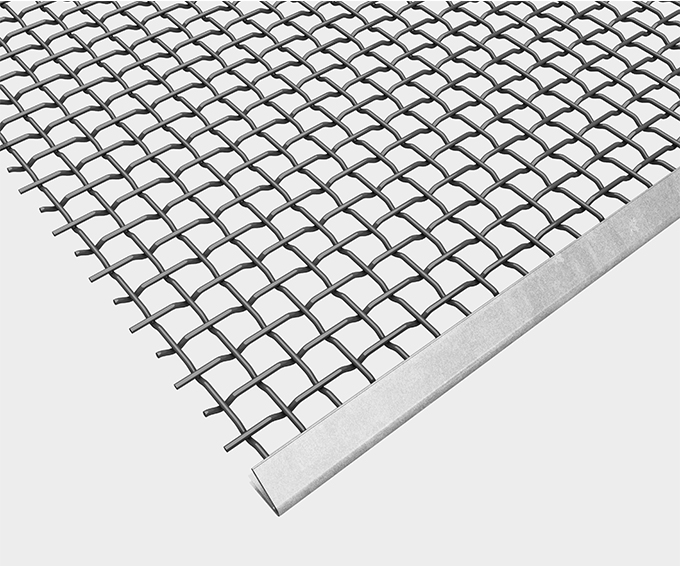

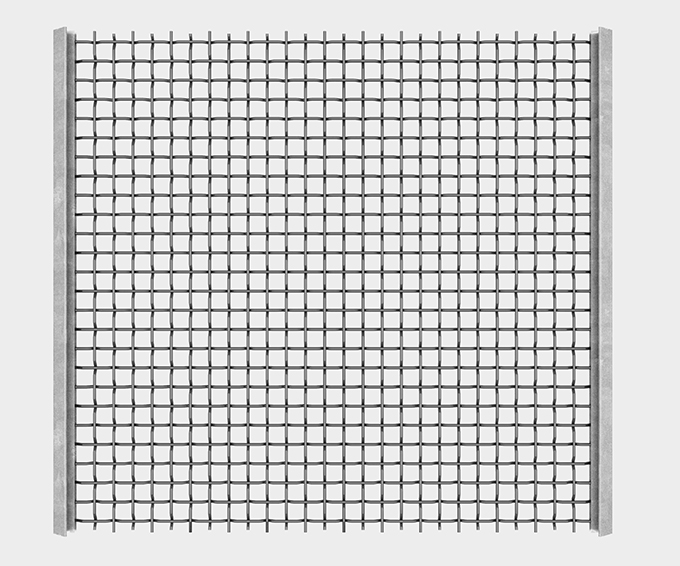

Flat Top

get a quote now PDF Download

Plain Weave

Inter Crimp

Lock Crimp

Lock Crimp

Flat Top

Specification of Square Weave Wire Mesh

Item No.	Opening (mm)	Wire Size (mm)	Weight kg/㎡
Item No.	Opening (mm)	Wire Size (mm)	Weight kg/㎡
1	3	2	10.16
2	3.15	1.4	5.47
3	3.15	2	9.86
4	3.18	1.22	4.30
5	3.18	1.37	5.24
6	3.18	1.83	8.49
7	3.18	2.03	10.05
8	3.18	2.34	12.60
9	3.18	2.67	15.48
10	3.35	2	9.50
11	3.75	2	8.83
12	3.75	2.5	12.70
13	3.97	3.05	16.83
14	4	2	8.47
15	4	2.5	12.21
16	4	3.15	17.62
17	4.35	2	8.00
18	4.5	2.5	11.34
19	4.5	2.8	13.64
20	4.5	3.15	16.47
21	4.75	2	7.53
22	4.75	2.8	13.19
23	4.75	3.15	15.95
24	4.76	2.03	7.71
25	4.76	2.34	9.79
26	4.76	2.67	12.19
27	4.76	3.05	15.13
28	4.76	3.43	18.24
29	5	1.6	4.93
30	5	2	7.26
31	5	2.5	10.58
32	5	2.8	12.77
33	5	3.15	15.46
34	5.3	2.5	10.18
35	5.3	3.15	14.91
36	5.56	2.67	11.00
37	5.56	3.05	13.72
38	5.6	2.8	11.85
39	5.6	3.15	14.40
40	6	2	6.35
41	6	2.5	9.34
42	6	3.15	13.77
43	6.3	2	6.12
44	6.3	2.5	9.02
45	6.3	3.15	13.34
46	6.3	4	19.73
47	6.35	2.34	8.00
48	6.35	2.67	10.04
49	6.35	3.05	12.57
50	6.35	3.43	15.28
51	6.35	4.11	20.51
52	6.47	2	6.00
53	6.7	3.15	12.79
54	6.87	1.6	3.84
55	7.1	2.5	8.27
56	7.1	2.8	10.06
57	7.1	3.15	12.29
58	7.1	4	18.31
59	7.5	3.15	11.83
60	7.94	3.43	13.14
61	7.94	3.76	15.35
62	7.94	4.11	17.80
63	7.94	4.88	23.59
64	8	2.5	7.56
65	8	3.15	11.30
66	8	4	16.93
67	8.5	4	16.26
68	9	2.5	6.90
69	9	3.15	10.37
70	9	4	15.63
71	9.5	2.5	6.61
72	9.5	2.8	8.09
73	9.5	3.15	9.96
74	9.5	4	15.05
75	9.53	3.43	11.53
76	9.53	3.76	13.51
77	9.53	4.11	15.73
78	9.53	4.88	20.99
79	9.53	6.3	31.84
80	9.7	3	9.00
81	10	3.15	9.58
82	10	4	14.51
83	10	5	21.17
84	10	6.3	30.92
85	10.2	2.5	6.25
86	10.7	2	4.00
87	10.6	4	13.92
88	10.6	6.3	29.83
89	11.11	4.5	16.48
90	11.11	4.88	18.91
91	11.2	2.8	7.11
92	11.2	3.15	8.78
93	11.2	4	13.37
94	11.2	5	19.60
95	11.8	2.5	5.55
96	11.8	3.15	8.43
97	11.8	4	12.86
98	11.8	5	18.90
99	11.8	6.3	27.85
100	12.5	3.15	8.05
101	12.5	4	12.32
102	12.5	5	18.14
103	12.7	3.05	7.50
104	12.7	3.76	10.91
105	12.7	4.11	12.76
106	12.7	4.5	14.95
107	12.7	4.88	17.20
108	12.7	5.26	19.56
109	13.2	3.15	7.71
110	13.2	4	11.81
111	13.2	5	17.45
112	14	2.5	4.81
113	14	4	11.29
114	14	5	16.71
115	14	5	16.71
116	14	6.3	24.83
117	14.29	4.11	11.66
118	14.29	4.88	15.78
119	14.29	5.26	17.97
120	14.29	5.72	20.77
121	15	5	15.88
122	15	6.3	23.66
123	15	8	35.34
124	15.88	4.11	10.73
125	15.88	4.88	14.57
126	15.88	5.26	16.62
127	15.88	5.72	19.24
128	15.88	6.3	22.73
129	16	4	10.16
130	16	5	15.12
131	16	5.6	18.44
132	16	6.3	22.60
133	16	8	33.87
134	16.5	2.5	4.18
135	17.46	3.05	5.76
136	17.46	3.76	8.46
137	17.46	4.88	13.54
138	17.46	6.3	21.21
139	18	4	9.24
140	18	5	13.80
141	18	6.3	20.74
142	18	8	31.26
143	19	2.8	4.57
144	19	5	13.23
145	19	5.6	16.19
146	19	6.3	19.92
147	19.05	3.05	5.35
148	19.05	4.88	12.64
149	19.05	5.26	14.45
150	19.05	5.72	16.78
151	19.05	6.3	19.88
152	19.05	6.3	19.88
153	19.05	7.94	29.66
154	20	5	12.70
155	20	6.3	19.17
156	20	6.3	19.17
157	20	8	29.03
158	20.6	2.8	4.26
159	20.6	6.3	18.74
160	21.2	6.3	18.33
161	21.2	6.3	18.33
162	21.2	7.1	22.62
163	21.7	6.3	18.00
164	22.23	4.88	11.16
165	22.23	5.26	12.78
166	22.23	5.72	14.87
167	22.23	6.3	17.67
168	22.23	6.3	17.67
169	22.23	7.19	22.32
170	22.23	7.94	26.54
171	22.25	3.15	4.96
172	22.4	5.6	14.22
173	22.4	6.3	17.56
174	22.4	6.3	17.56
175	22.4	7.1	21.70
176	22.4	8	26.74
177	22.4	8	26.74
178	22.4	10	39.20
179	23.6	5	11.10
180	23.6	6.3	16.86
181	23.81	5.26	12.09
182	23.81	5.72	14.07
183	23.81	7.94	25.22
184	25	3.15	4.48
185	25	3.15	4.48
186	25	4	7.01
187	25	6.3	16.10
188	25	6.3	16.10
189	25	8	24.63
190	25	8	24.63
191	25	10	36.29
192	25.4	3.05	4.15
193	25.4	5.26	11.46
194	25.4	5.72	13.35
195	25.4	6.3	15.90
196	25.4	7.94	24.01
197	25.4	9.53	33.02
198	25.4	10.01	35.94
199	26.5	6.3	15.37
200	26.5	8	23.56
201	26.99	5.72	12.70
202	26.99	6.3	15.14
203	28	5	9.62
204	28	6.3	14.70
205	28	8	22.58
206	28.58	5.72	12.11
207	28.58	6.3	14.45
208	28.58	7.94	21.92
209	30	4	5.98
210	30	5	9.07
211	30	6.3	13.89
212	30	7.1	17.26
213	30	8	21.39
214	30	10	31.75
215	30	10	31.75
216	31.5	5	8.70
217	31.5	6.3	13.34
218	31.5	7.1	16.59
219	31.5	8	20.58
220	31.5	8	20.58
221	31.5	10	30.60
222	31.5	11.2	37.31
223	31.5	12.5	45.10
224	31.5	12.5	45.10
225	31.75	6.3	13.25
226	31.75	7.19	16.86
227	31.75	7.94	20.17
228	31.75	9.53	27.94
229	31.75	10.01	30.47
230	31.75	11.11	36.57
231	34.93	4	5.22
232	34.93	6.3	12.23
233	34.93	7.94	18.68
234	34.93	11.11	34.05
235	35.5	8	18.69
236	35.5	10	27.91
237	35.5	12.5	41.34
238	35.5	12.5	41.34
239	37.5	7.1
240	37.5	8	17.86
241	38.1	7.19	14.50
242	38.1	7.94	17.39
243	38.1	9.53	24.22
244	38.1	9.53	24.22
245	38.1	10.01	26.45
246	38.1	11.11	31.86
247	38.1	12.7	40.32
248	38.1	12.7	40.32
249	40	4	4.62
250	40	8	16.93
251	40	8	16.93
252	40	10	25.40
253	40	10	25.40
254	40	12.5	37.80
255	40	12.5	37.80
256	41.28	11.11	29.92
257	42.5	7.1	12.91
258	42.5	8	16.10
259	44.45	7.19	12.71
260	44.45	9.53	21.37
261	45	6.3	9.83
262	45	8	15.34
263	45	10	23.09
264	45	10	23.09
265	45	12.5	34.51
266	45	12.5	34.51
267	47.5	8	14.65
268	50	8	14.01
269	50	10	21.17
270	50	10	21.17
271	50	12.5	31.75
272	50	12.5	31.75
273	50.8	7.94	13.63
274	50.8	9.53	19.12
275	50.8	9.53	19.12
276	50.8	9.53	33.03
277	50.8	10	20.89
278	50.8	12.7	32.26
279	53	8	13.32
280	53	10	20.16
281	56	8	12.70
282	56	10	19.24
283	56	11.2	23.71
284	56	12.5	28.97
285	57.15	10.01	18.95
286	60	8	11.95
287	60	10	18.14
288	60	11.2	22.37
289	63	10	17.40
290	63	11.2	21.47
291	63.5	7.94	11.21
292	63.5	12.7	26.88
293	65	8	11.13
294	65	10	16.93
295	65	12.5	25.60
296	67	12.5	24.96
297	71	8	10.29
298	71	10	15.68
299	71	11.2	19.38
300	75	10	14.94
301	75	11.2	18.48
302	75	12.5	22.68
303	76.2	9.53	24.22
304	76.2	9.53	13.45
305	76.2	12.7	23.04
306	80	10	14.11
307	80	12.5	21.45
308	80	12.5	37.80
309	85	11.2	16.56
310	90	12.5	19.36
311	100	11.2	14.33
312	100	12.5	17.64
313	101.6	12.7	17.92
314	125	12.5	14.43
315	150	12.5	12.21
316	150	12.5	22.68

Square Mesh Weaves Types

Type	Figure
A	Double crimp screen
C	Inter crimp screen
D	Lock crimp screen
E	Flat-top screen

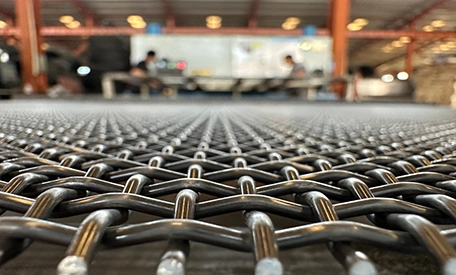

1. Plain Weave

Structure: The simplest and most common weave, where the weft wire alternates over and under each warp wire.

Appearance: Creates a uniform, grid-like pattern with square openings.

Strength: Offers good mechanical stability and is durable.

Uses: Widely used for general-purpose screening, filtration, and protection in various industries like construction, agriculture, and food processing.

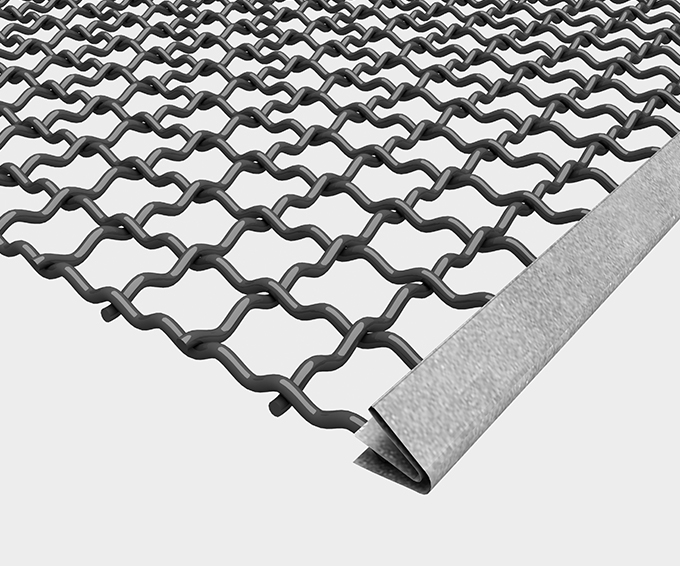

2. Inter Crimp

Structure: Both warp and weft wires are crimped before weaving, interlocking at each intersection.

Appearance: Produces a slightly more textured and rigid mesh compared to plain weave.

Strength: Enhances rigidity and prevents the mesh from distorting under heavy loads.

Uses: Suitable for heavy-duty applications where high strength and stability are required, such as in mining, quarrying, and industrial sieving.

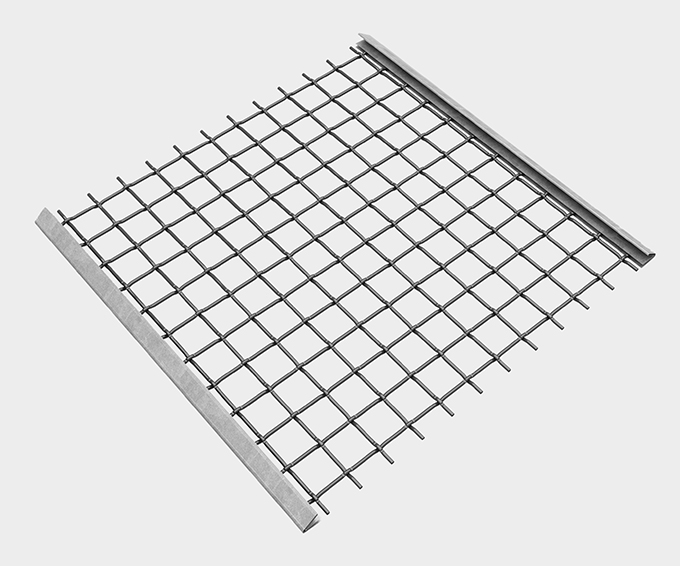

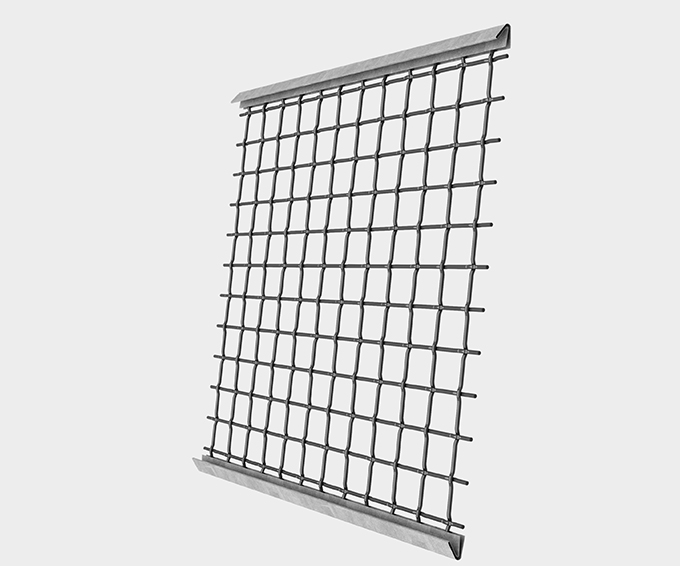

3. Lock Crimp

Structure: Wires are pre-crimped and locked in place at the points of intersection, ensuring consistent spacing and rigidity.

Appearance: Features a very precise and tight mesh structure with distinct crimped junctions.

Strength: Offers exceptional dimensional stability and strength due to the locking mechanism.

Uses: Ideal for applications requiring accurate sizing and high load-bearing capacity, such as architectural design, safety grilles, and fencing.

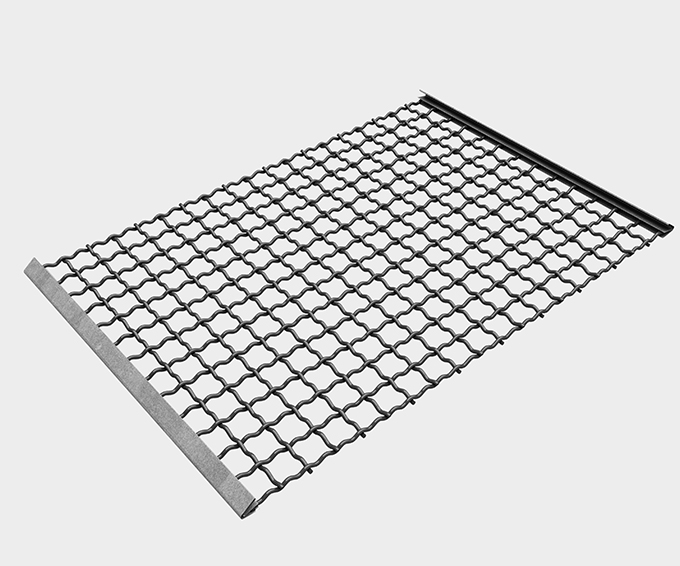

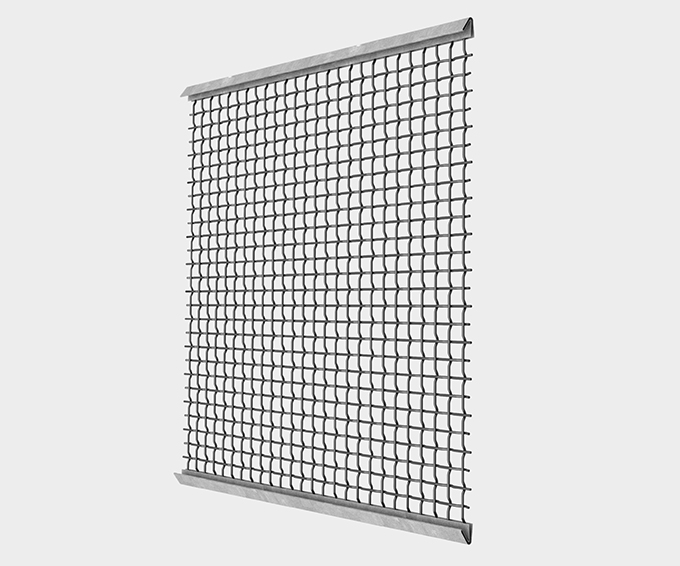

4. Flat Top

Structure: The weft wires are crimped, while the warp wires remain flat on the surface.

Appearance: Provides a smooth top surface on one side, reducing wear and friction.

Strength: Combines the strength of a crimped weave with a smooth top surface, making it durable and easy to clean.

Uses: Often used in applications where a smooth surface is necessary, like in food processing, drying racks, and conveyor belts.

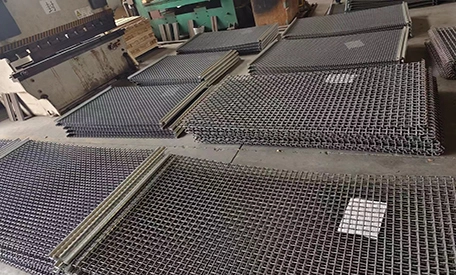

Features of Square Mesh

Large percentage open area boosts production

Perfect flatness

±3% opening tolerance

40% longer wear life than traditional woven wires.

Products

Anpeng Quality Control

Incoming Goods Inspection (IQC)

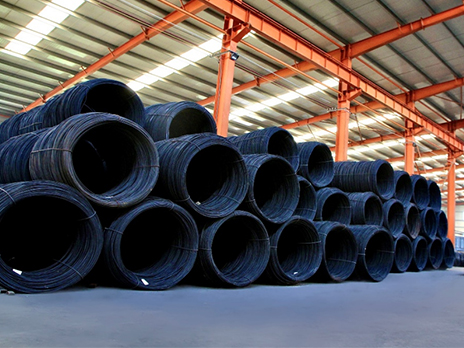

Raw materials such as high tensile steel wires, polyurethane screen mesh and stainless steel woven wire cloth undergone rigid inspection by our QC inspector when first arrive at our warehouse. We test their chemical components, physical properties, and general conditions of the materials. Defective goods would be returned or disposed, which would not be used in any Anpeng Wire Mesh Production Process.

Process Inspector (IPQC)

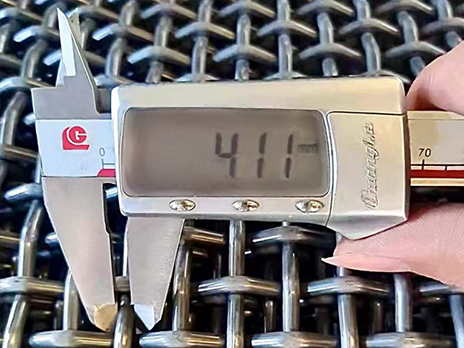

To improve efficiency and accuracy, Anpeng wire mesh in China follows rigid and standardized guidelines that emphasize the safety of employees and physical risk management. The whole process is monitored and inspected by our QC.

Final Inspector (FQC)

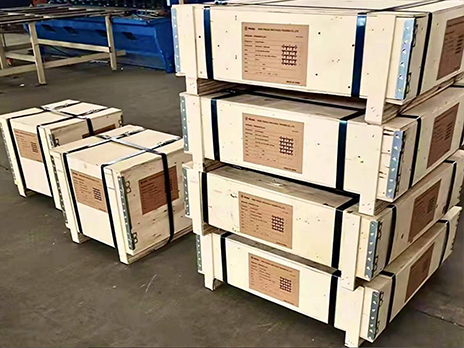

QC will perform trial operation with selected sample from each production, during which our QC personnel will check the flatness of screens, apertures, wire sizes and tensile strength to make sure they are within ±3% tolerance, and that they meet corresponding requirements of each order.
