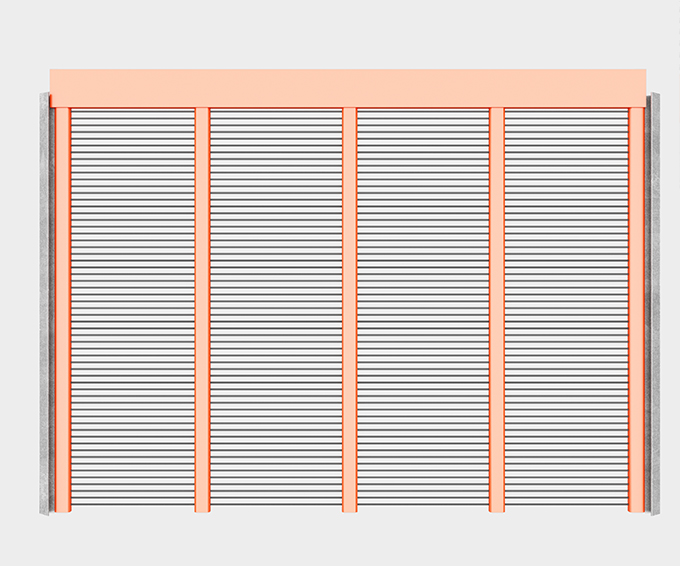

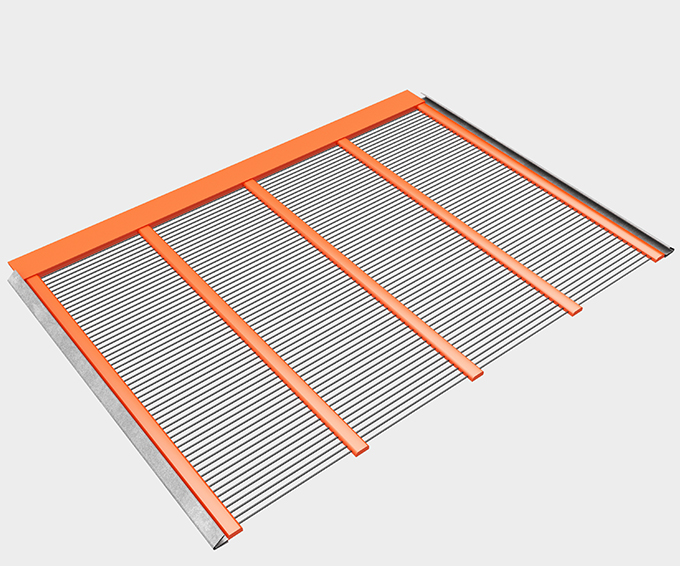

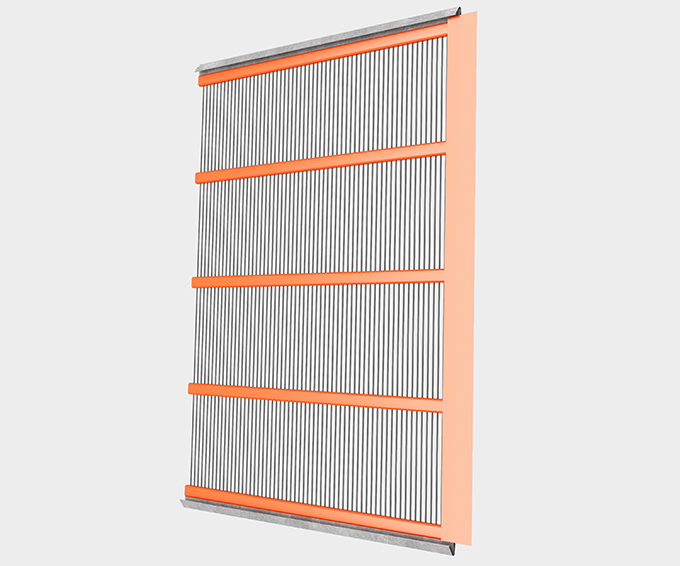

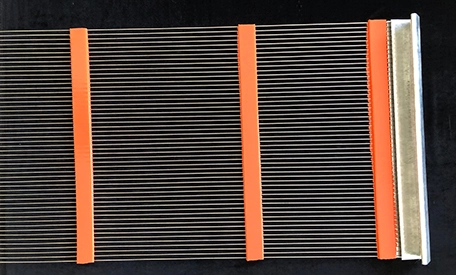

Piano Wire Screens

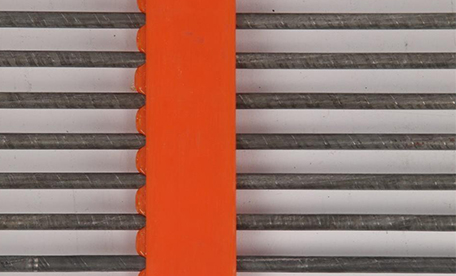

Piano wire screens, also known as harp wire screens, are specialized screening solutions made from high-tensile steel wires that are tightly tensioned in parallel. Named after their similarity to piano strings, these screens provide a high open area and outstanding self-cleaning performance, effectively preventing material clogging and enhancing screening efficiency. They are particularly well-suited for screening fine, wet, sticky, or easily clogged materials.
Our Piano Wire Screens are customizable to meet specific client requirements. With various wire diameters, aperture sizes, and edge connection methods, our screens ensure compatibility with different vibrating screen models and applications.
Applications of Piano Wire Screens
Piano wire screens are used in several industries, including:
Mining: Efficient separation of minerals and ores, particularly in high-impact and abrasive environments.
Quarrying: Handling large volumes of aggregate and coarse materials.
Recycling: Sorting materials in recycling plants, where reducing downtime and wear is essential.
Construction: For separating different grades of sand, gravel, and other construction materials.
Technical Specifications
| Specification | Details |
|---|---|
| Wire Material | 65Mn, High-Carbon Steel, Spring Steel, 304 Stainless Steel |
| Wire Diameter | 0.5–6.0 mm (custom available) |
| Aperture Range | 1.0–50 mm |
| Width | Up to 2500 mm |
| Length | Custom per deck size |

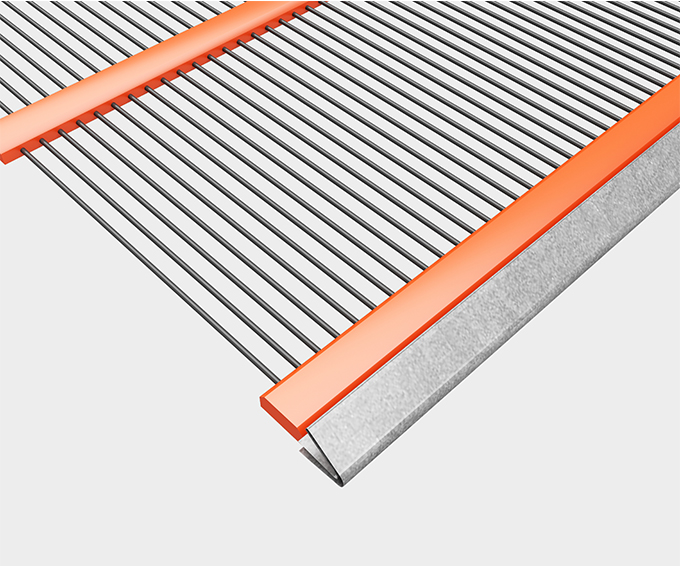

| Cross Support | Polyurethane strips, Rubber strips, or Steel hooks |
| Hook Types | C-Type, U-Type, 45° / 180° hooks, or custom tension hooks |
Why Choose ANPENG Piano Wire Screens?
We provide tailored solutions based on your material, moisture, and throughput needs.
Our piano wire screens are made from high-tensile steel, ensuring maximum durability and wear resistance.
We help you reduce maintenance and downtime with long-lasting, efficient screening solutions.
Key Benefits of Piano Wire Screens
For separating minerals, ores, and aggregates in mining operations. Ideal for handling abrasive materials and ensuring high productivity.
Used in the extraction and processing of sand, gravel, and other materials. Woven wire screens provide high capacity and consistent separation.
Helps in sorting materials like sand, gravel, and crushed stone for building projects. Essential for creating clean, high-quality aggregates.
Can be tailored to your specific screening needs, including mesh size and aperture.
The high-strength wire used in piano wire screens increases their lifespan, reducing downtime and maintenance costs.

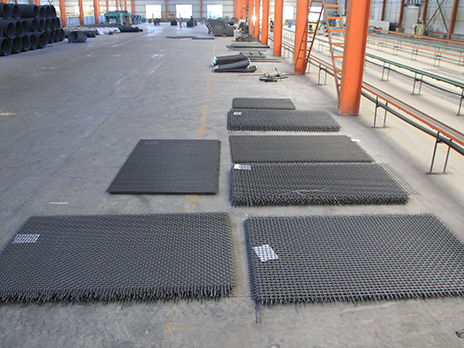

Anpeng Factory Tour
FAQs
What materials are Piano Wire Screens made from?
Piano wire screens are made from high-tensile steel, which is known for its strength and ability to withstand high-impact and abrasive environments. This makes them ideal for use in mining, quarrying, and recycling operations.

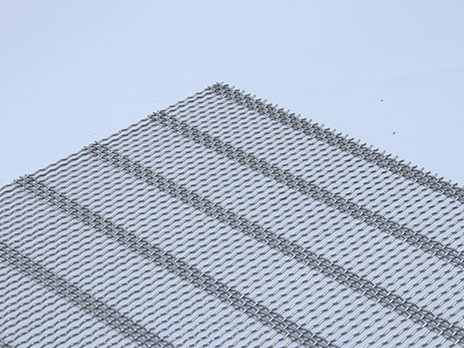

What makes Piano Wire Screens different from woven wire mesh?
Piano wire screens offer higher open area and superior durability for heavy-duty applications, while woven wire mesh provides flexibility for finer screening tasks.
Can Piano Wire Screens be used in wet and sticky materials?
Yes, the self-cleaning properties of Piano Wire Screens make them ideal for materials that cause clogging, such as wet, sticky, or fine particles.
How do I install Piano Wire Screens?
Piano wire screens can be installed using various hook types (C-type, U-type, 45° / 180°) depending on your vibrating screen model. Proper tensioning is essential to avoid damage.
What is the typical lifespan of Piano Wire Screens?
With proper installation and maintenance, Piano Wire Screens offer a longer service life compared to other screen types, reducing downtime and replacement costs.
