Diamond Opening Self-cleaning Screen

Name: Diamond Opening Screen
Brand: Anpeng Wire Mesh Filter Equipment Co., Ltd.

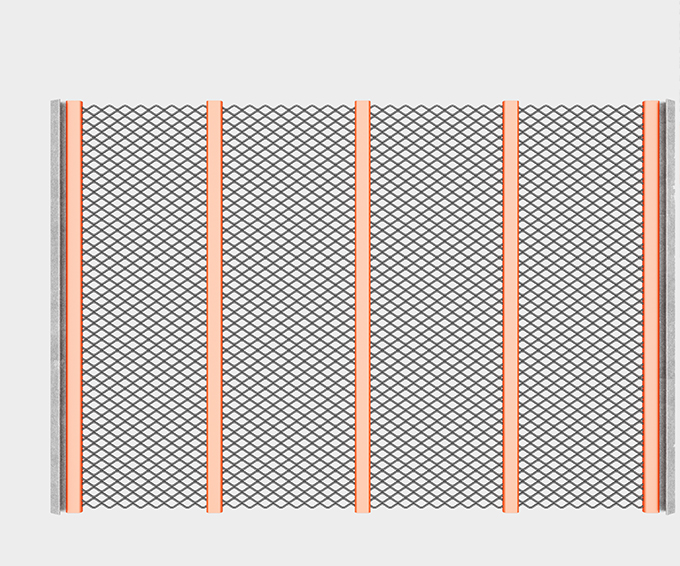

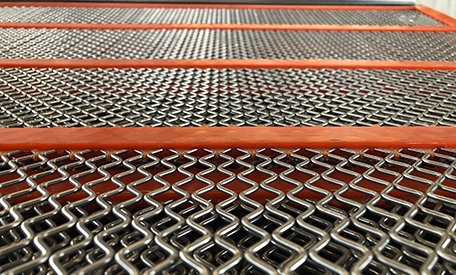

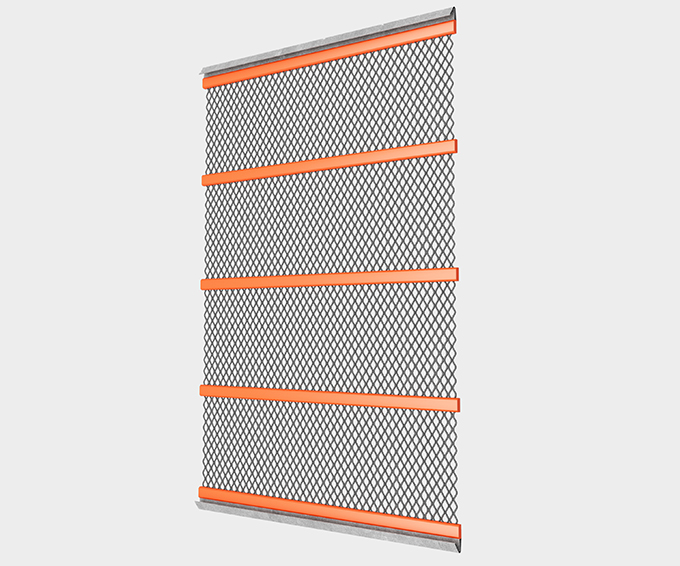

Anpeng Diamond shape self-cleaning is consist of crimped round wires bond togther by polyurethane bars creating the 'Square' or 'Diamond' openings. This type of screens serves all the functions of traditional Square woven wire mesh, by providing precise sizing control and increase open area. What's more is that the diamond self-cleaning screen is able to eliminate blinding, pegging and clogging problems due to its special design and structure. Each wire will vibrate at different frequency during screening, and this is what creates the self-cleaning effects of all our self-cleaning series.

get a quote now PDF Download

Diamond Opening

Diamond Opening

Diamond Opening

Diamond Opening

Specification of Diamond Wire/Metal Screen

Item No.	Opening (mm)	Wire Size (mm)
1	2.24	0.9
2	2.5	1.2
3	2.5	1.6
4	2.75	2
5	3	1.2
6	3	1.6
7	3	1.8
8	3.15	1.25
9	3.15	1.6
10	3.15	2
11	3.5	1.6
12	3.5	2
13	3.71	1.25
14	4	1.6
15	4	2
16	4	2.5
17	4.41	2
18	4.5	1.6
19	4.5	2.5
20	4.76	1.37
21	4.76	1.83
22	4.76	2.03
23	5	1.6
24	5	2
25	5	2.34
26	5	2.5
27	5	3.15
28	5.3	3.15
29	5.4	2
30	5.5	3.15
31	5.6	2
32	5.6	2.5
33	5.6	2.8
34	6	2
35	6	2.5
36	6	3
37	6	3.15
38	6.3	1.6
39	6.3	2
40	6.3	2.5
41	6.3	3.15
42	6.35	1.83
43	6.35	2.34
44	6.35	2.67
45	6.35	3
46	6.8	3
47	7	2
48	7.1	2.5
49	7.1	3.15
50	7.1	4
51	7.5	2.5
52	7.94	2.67
53	8	2
54	8	2.5
55	8	2.8
56	8	3.15
57	8	4
58	8.2	4
59	8.5	2.5
60	9	2
61	9	2.5
62	9	3
63	9	3.15
64	9.5	2.5
65	9.5	4
66	9.53	3.05
67	9.53	3.43
68	9.53	3.76
69	10	2.5
70	10	3.15
71	10	4
72	10	5
73	10.46	4
74	10.96	3.15
75	11.2	2.5
76	11.2	3.76
77	11.2	4
78	11.2	5
79	11.5	5
80	12	2.5
81	12	3.15
82	12	4
83	12	5
84	12.5	3.15
85	12.5	4
86	12.5	5
87	12.7	3.05
88	12.7	3.15
89	12.7	3.76
90	12.7	4.11
91	12.92	5
92	13	3.15
93	13.2	2.5
94	13.2	3.15
95	13.2	4
96	13.5	6.3
97	14	2.5
98	14	3.15
99	14	4
100	14	5
101	14.29	4.11
102	15	3.15
103	15	4
104	15.88	4.11
105	16	3.15
106	16	4
107	16	5
108	17	3.15
109	17.46	4.11
110	17.5	3.15
111	18	4
112	18	5
113	18	6.3
114	18.41	5
115	18.5	4
116	19	3.15
117	19	4
118	19.05	4.88
119	19.05	5.26
120	20	3.15
121	20	4
122	20	5
123	20	6.3
124	20	8
125	20.63	5.72
126	20.64	4.5
127	21.85	3.15
128	22	4
129	22.23	4.88
130	22.23	5.26
131	22.23	5.72
132	22.4	4
133	22.4	5
134	22.4	6.3
135	22.4	8
136	23.81	4.88
137	24	3.15
138	24	4
139	25	3.15
140	25	4
141	25	5
142	25	6.3
143	25	8
144	25.35	5.72
145	25.4	4
146	25.4	4.11
147	26.5	6.3
148	27	6.3
149	28	4
150	28	5
151	28	6.3
152	28.34	5.72
153	29.6	6.3
154	30	6.3
155	31.5	6.3
156	35.5	6.3
157	36	10
158	38.1	6.3
159	40	8
160	40	10
161	45	8
162	45	10
163	50	10
164	55	10
165	62	10

Features of Diamond Wire/Metal Screen

Eliminate blinding and clogging

Higher open area than traditional square mesh

Increase production and lower costs

Accurate sizing

Wear resistance, corrosion resistance

High screening efficiency – up to 40 % more throughput

Products

Self-cleaning Screens Quality Control

Anpeng Self-cleaning screen Quality Control

Incoming Goods Inspection (IQC)

Raw materials such as high tensile steel wires, polyurethane, and stainless steel wires underwent rigid inspection by our QC inspector when first arrive at our warehouse. We test the chemical components, physical properties, and general conditions of the materials. Defective goods would be returned or disposed of, which would not be used in any Anpeng Wire Mesh Production Process.

Process Inspector (IPQC)

To improve efficiency and accuracy, Anpeng Wire Mesh follows rigid and standardized guidelines that emphasize the safety of employees and physical risk management. The whole process is monitored and inspected by our QC.

Final Inspector (FQC)

QC will perform trial operation with selected sample from each self-cleaning series production, during which our QC personnel will check the flatness of screens, opening sizes and shapes, wire sizes, polyurethane bars' shape and gap, and tensile strength to make sure they are within ±3% tolerance, and that they meet corresponding requirements of each order.
